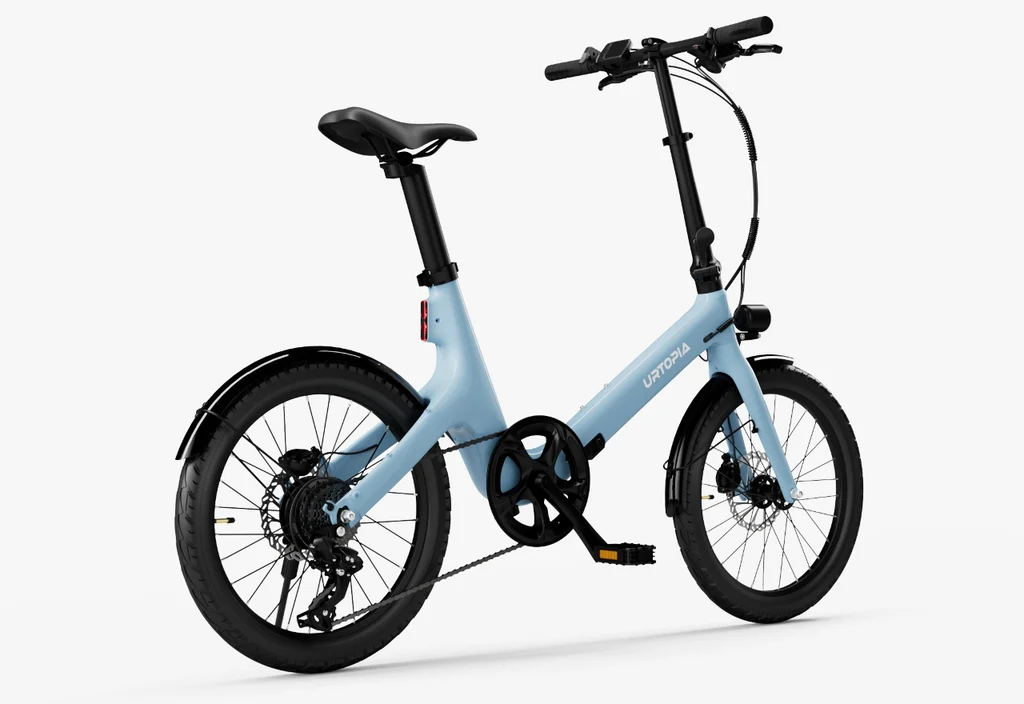

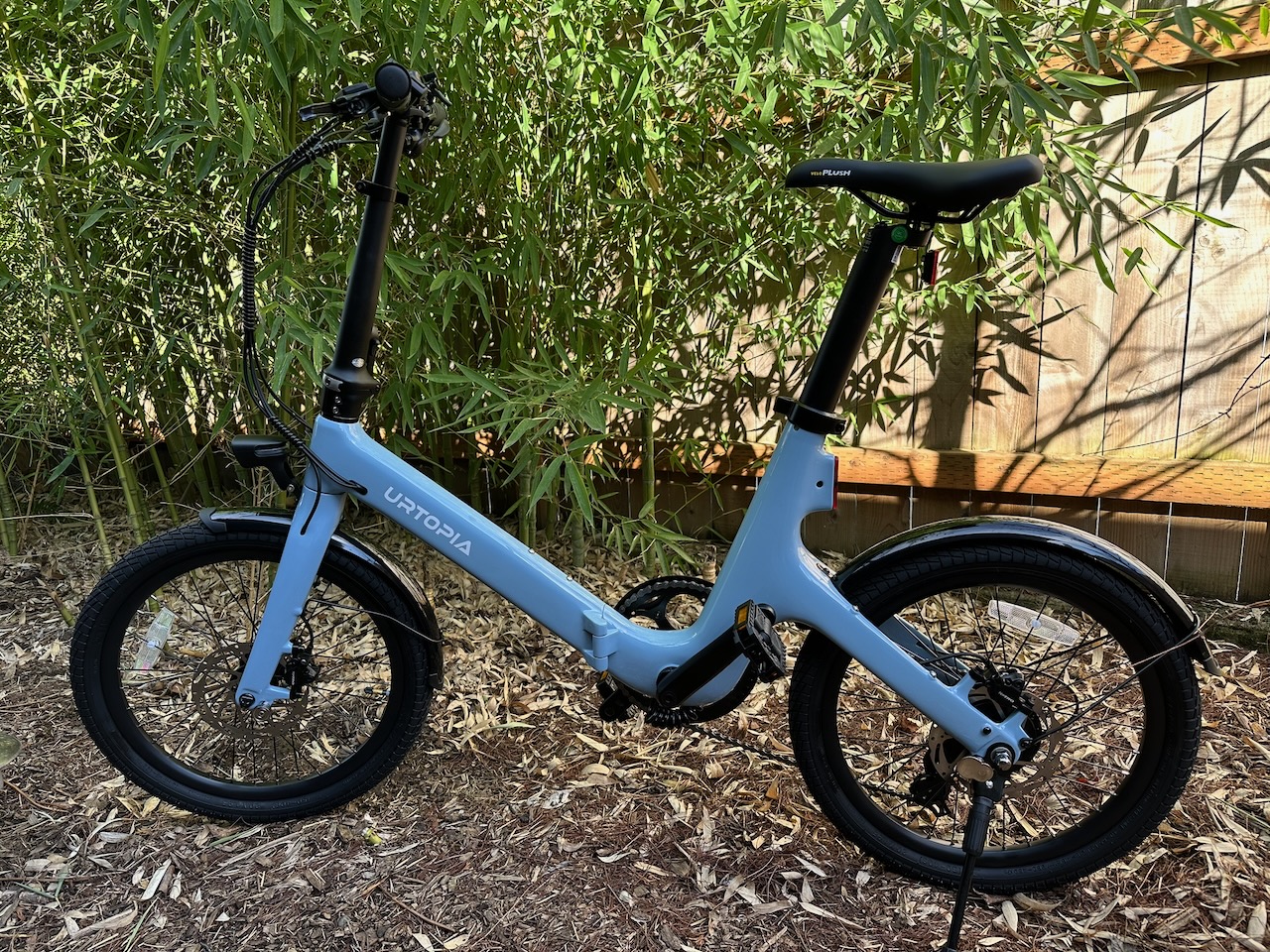

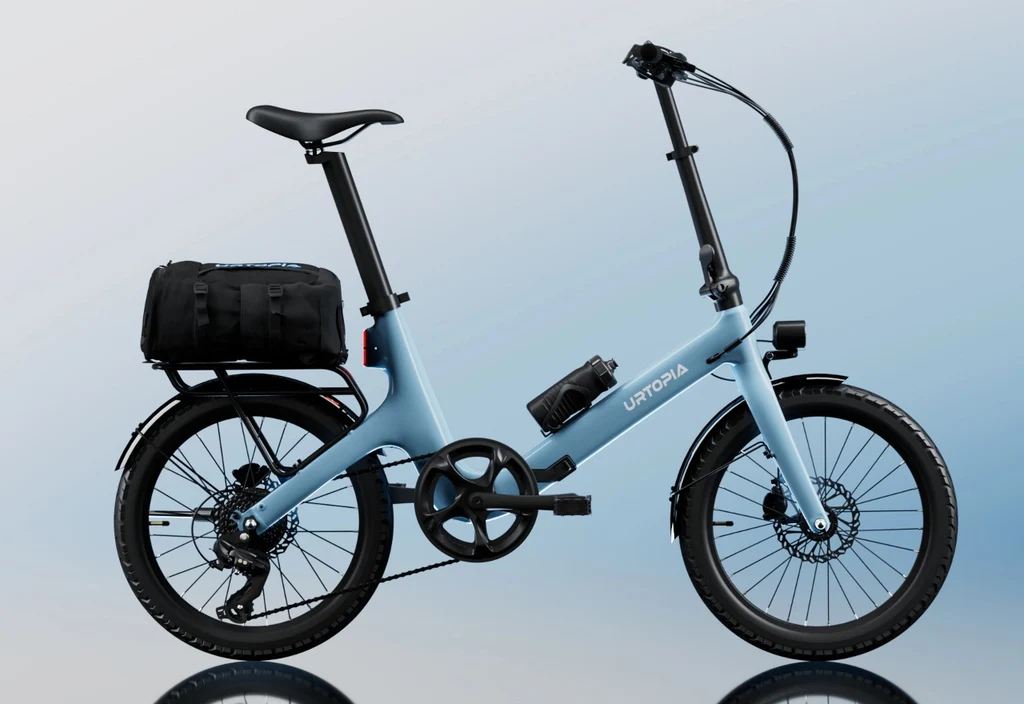

Urtopia Carbon Fold Step-Thru

General Info

• Range: Up to 50 miles (50-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads without throttle.)
• Net Weight: 31 lbs w/o acc.
• Space-efficient: 20% more compact
• Torque Sensor: 0 Response Latency
• Colorful Display: LCD Screen
• Power control: Torque Sensor and Thumb Throttle
• Safety Certified: UL 2849
• Material: Carbon fiber (frame, fork)
• Range: Up to 50 miles
• *The 50-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads without throttle.
• Top Speed: 20 mph
• Total Weight Limit: 220 lbs

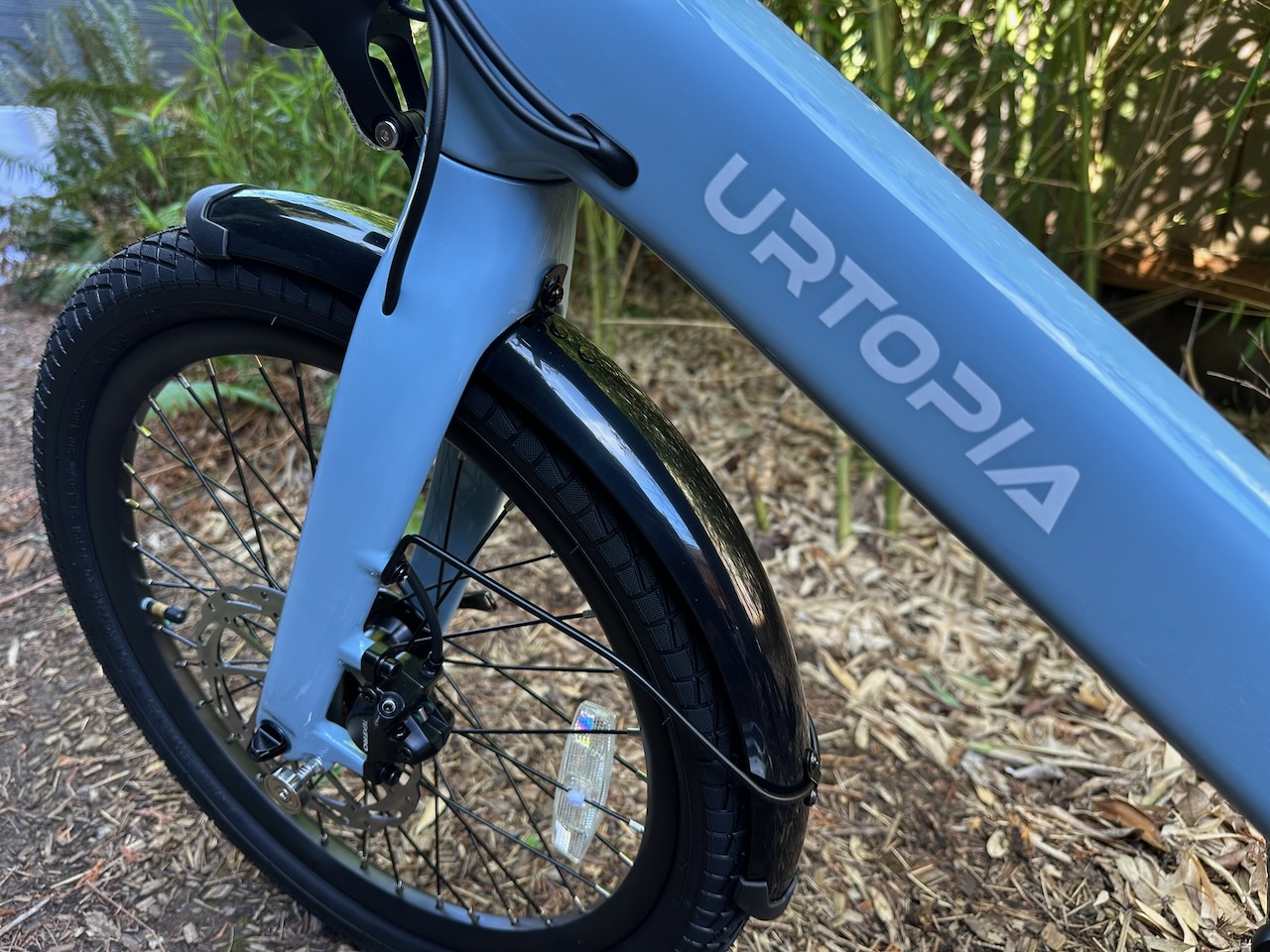

• Brakes: TEKTRO hydraulic disc brake
• Wheels: Kenda 20″ x 1.95″

Electrical System

• Class: Class 2
• Motor: 250W (Peak Power 500W) rear hub, 42Nm
• Throttle: Optional (up to 20 mph)

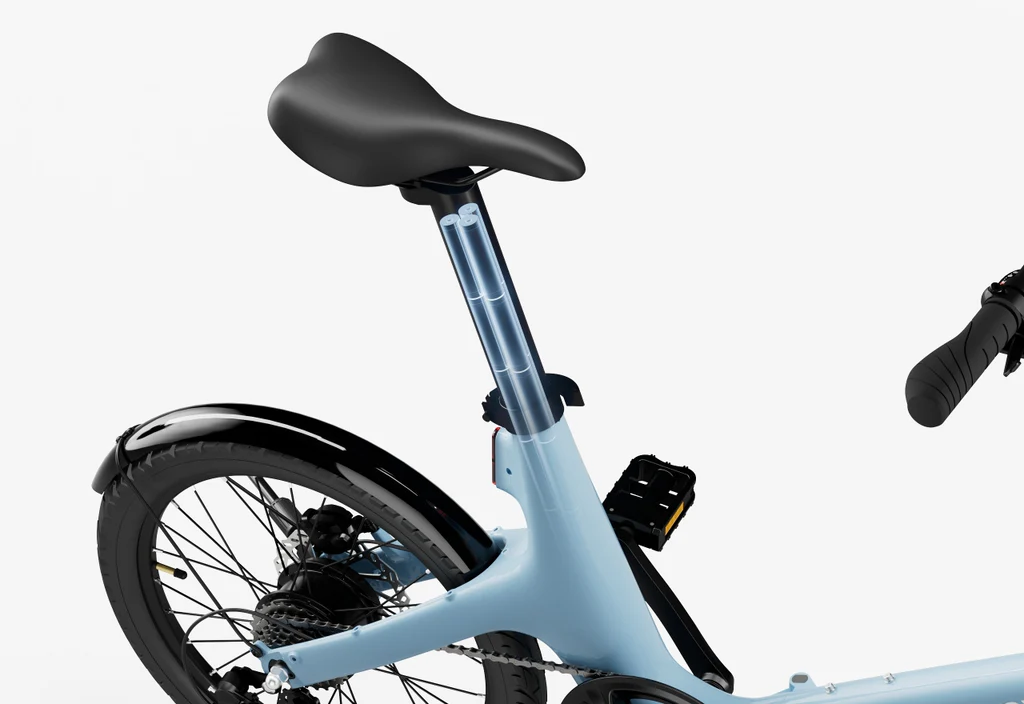

• Battery: 252Wh seat post battery, certified to UL-2271, removable battery
• Pedal Assist: 4 levels
• Charger: 3.5hrs fast charger

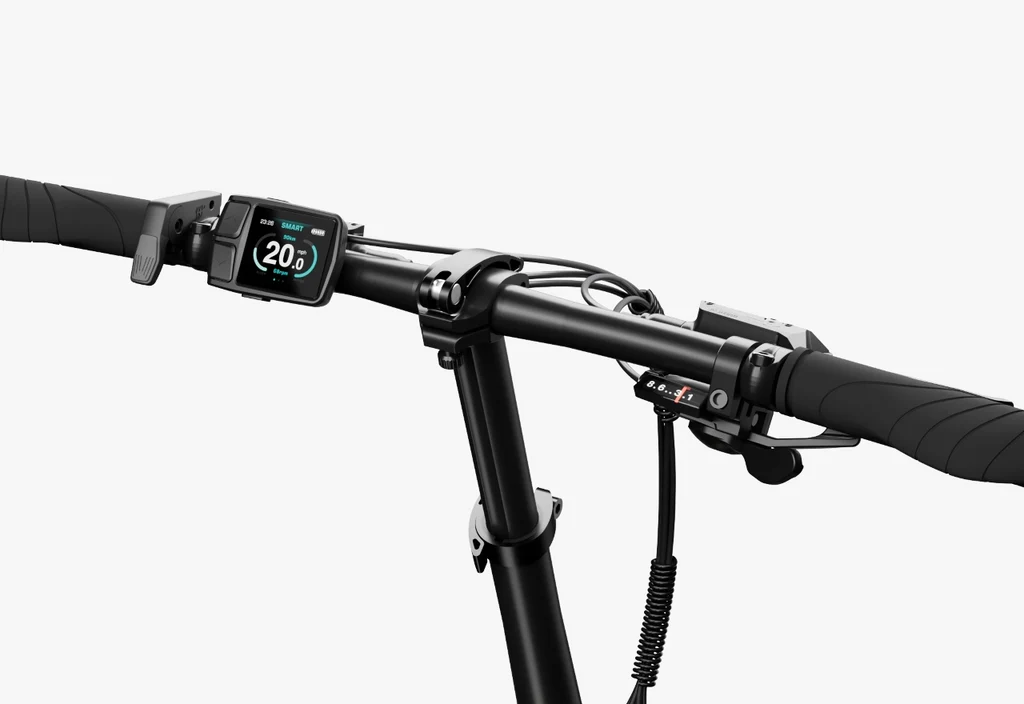

• Display: 2’’ Color display
• Sensors: Torque sensor

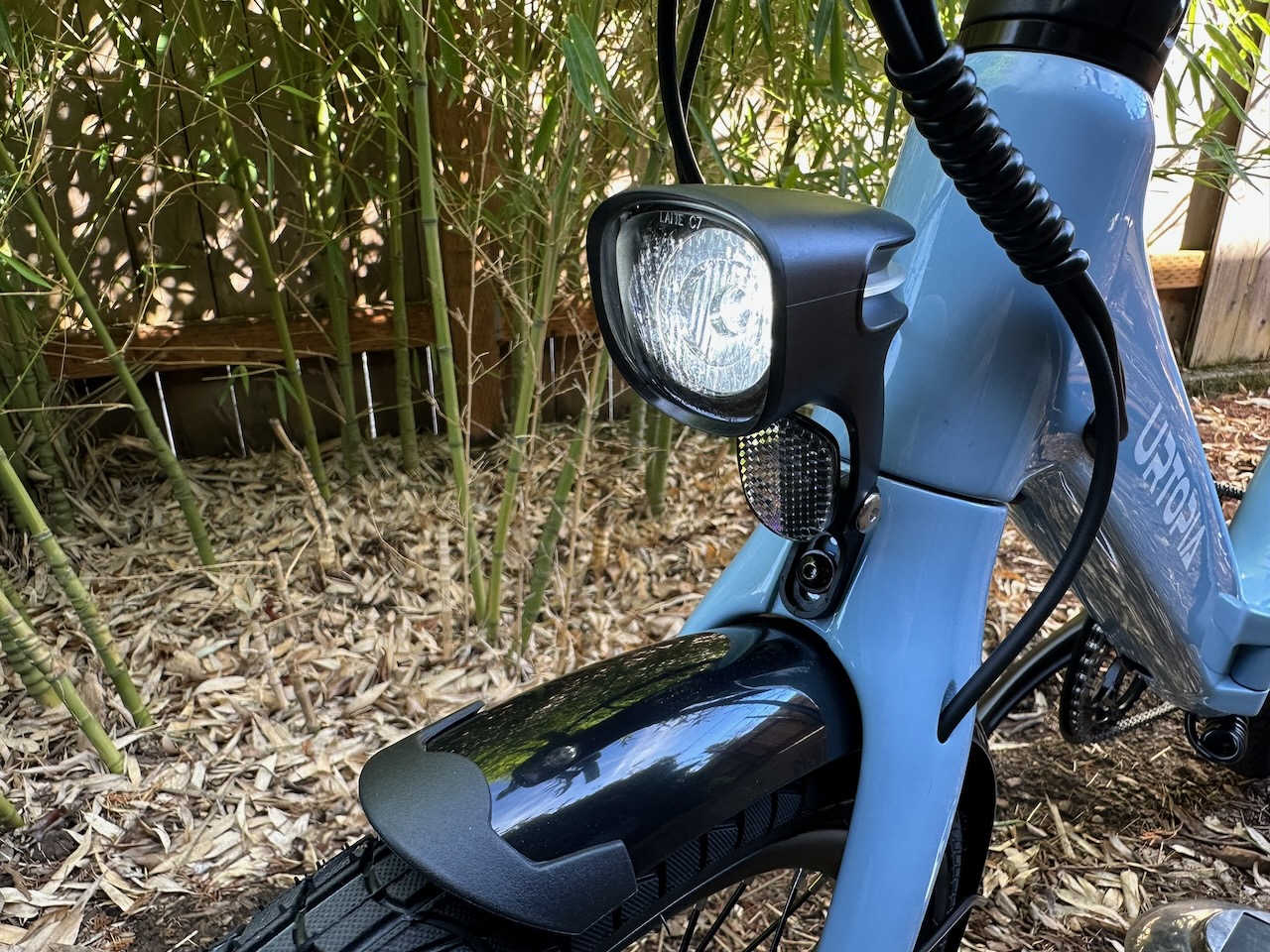

• Lights: Front: External lights, 60 Lux

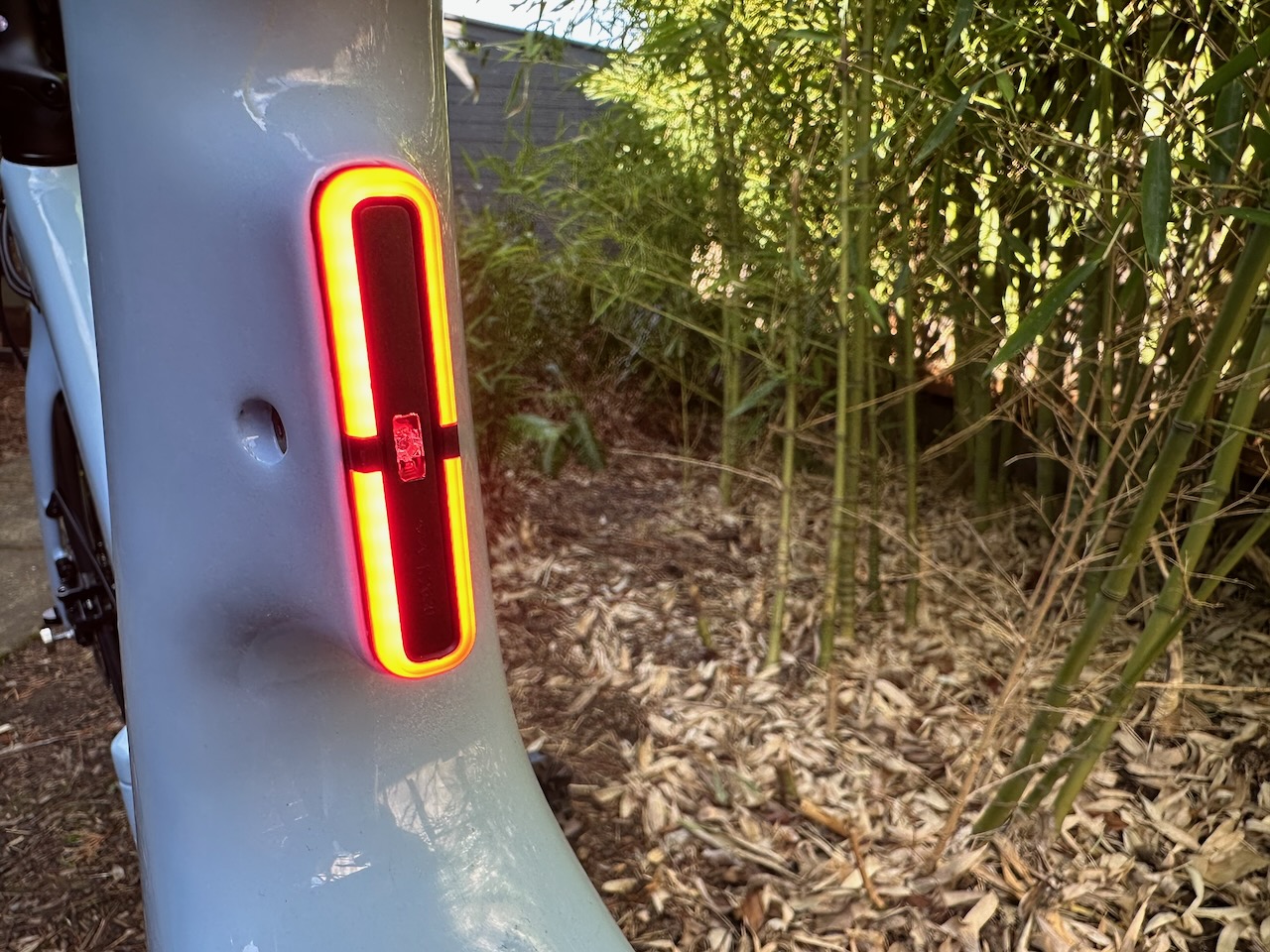

• Lights: Rear: Integrated tail lights
• Water Resistance: IP65

Drivetrain

• Chainrings: 52T
• Cassette: 14-28T, 7 Speed
• Chain: Shimano 7 speed
• Rear Derailleur: Shimano Tourney 7-Speed
• Shift Lever: 7 Speed Trigger

• One Size: Fit for 4’11” – 6’5″
• Net Weight: 31 lbs w/o acc.
• Top Speed: 20 mph
• Total Weight Limit: 220 lbs
• Max Seat Height: 43″
• Min Seat Height: 31″
• Overall length: 61″
• Handlebar grips height: 43″
• Headset height: 17″-12″
• Seat tube length: 16″
• Wheel diameter: 20″
• Wheelbase: 40″
• Height after folding: 28″
• Overall length after folding: 32″
• Width after folding: 19″
