Description

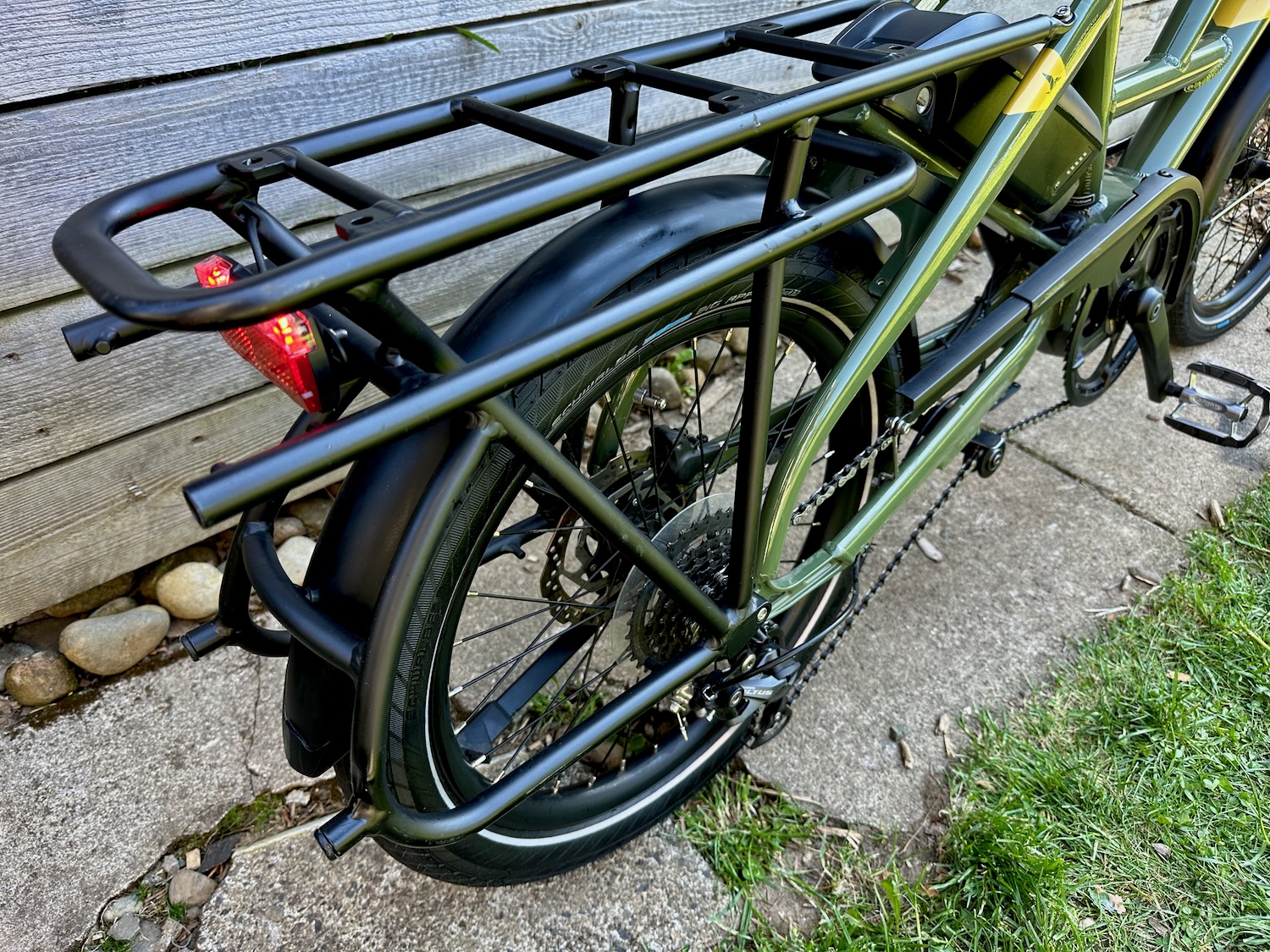

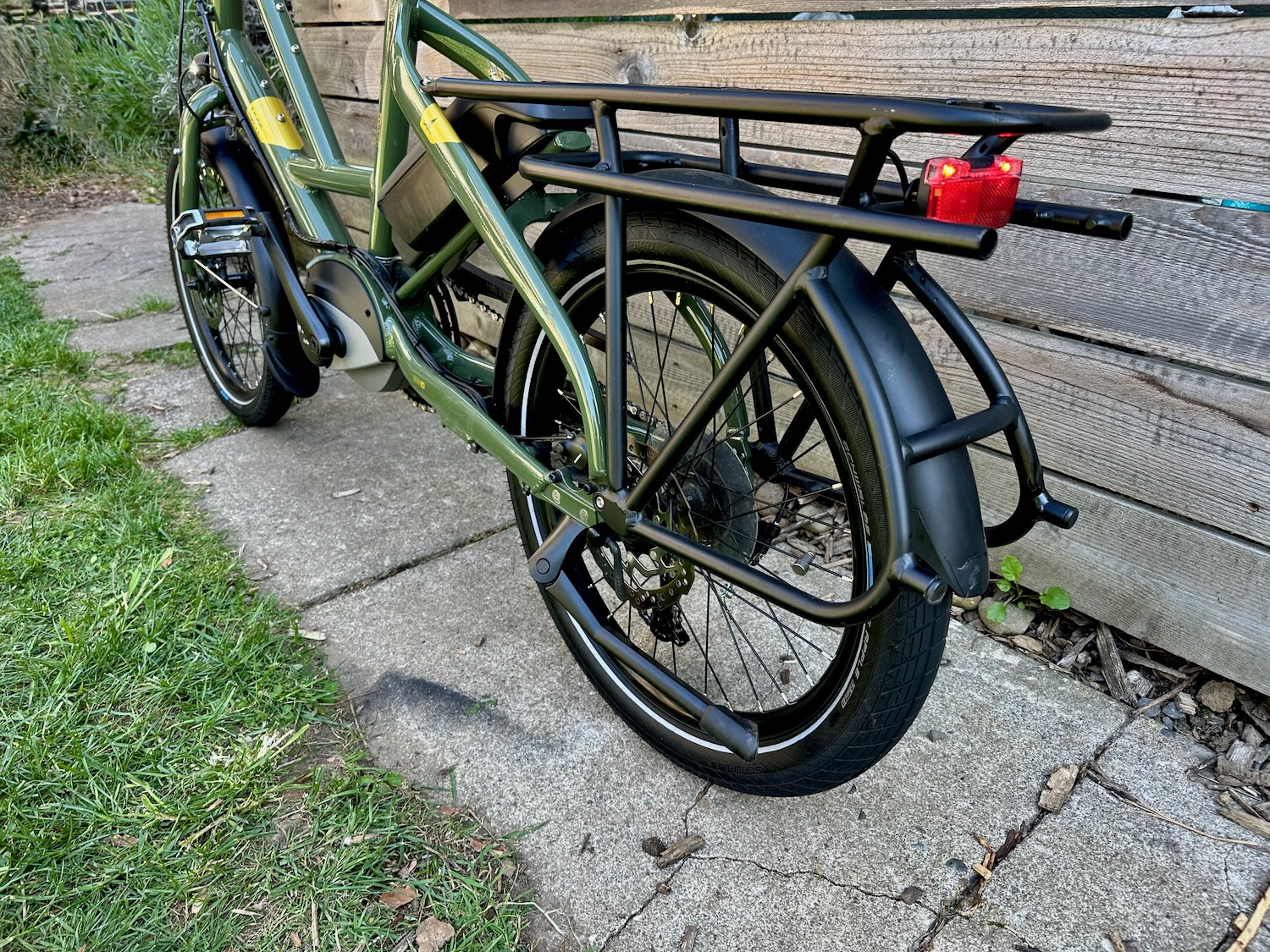

What Makes it a D8? – Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support – 1×8-speed Shimano Altus groupset with trigger shifter Quick Haul Highlights – Cargo capacity: 110 lb on the rear rack, plus an additional 44 lb with optional front rack – Fits riders 5’3″—6’5″, and also riders 4’9″—5’11” when equipped with a shorter, 350 mm seatpost – Lots of available kid- and cargo-carrying accessories-easily create your perfect setup – Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier – Shimano hydraulic disc brakes for reliable stopping power-even when heavily loaded and riding fast – Proven safe and reliable: frame and fork are EFBE-tested up to the 331 lb Maximum Gross Vehicle Weight

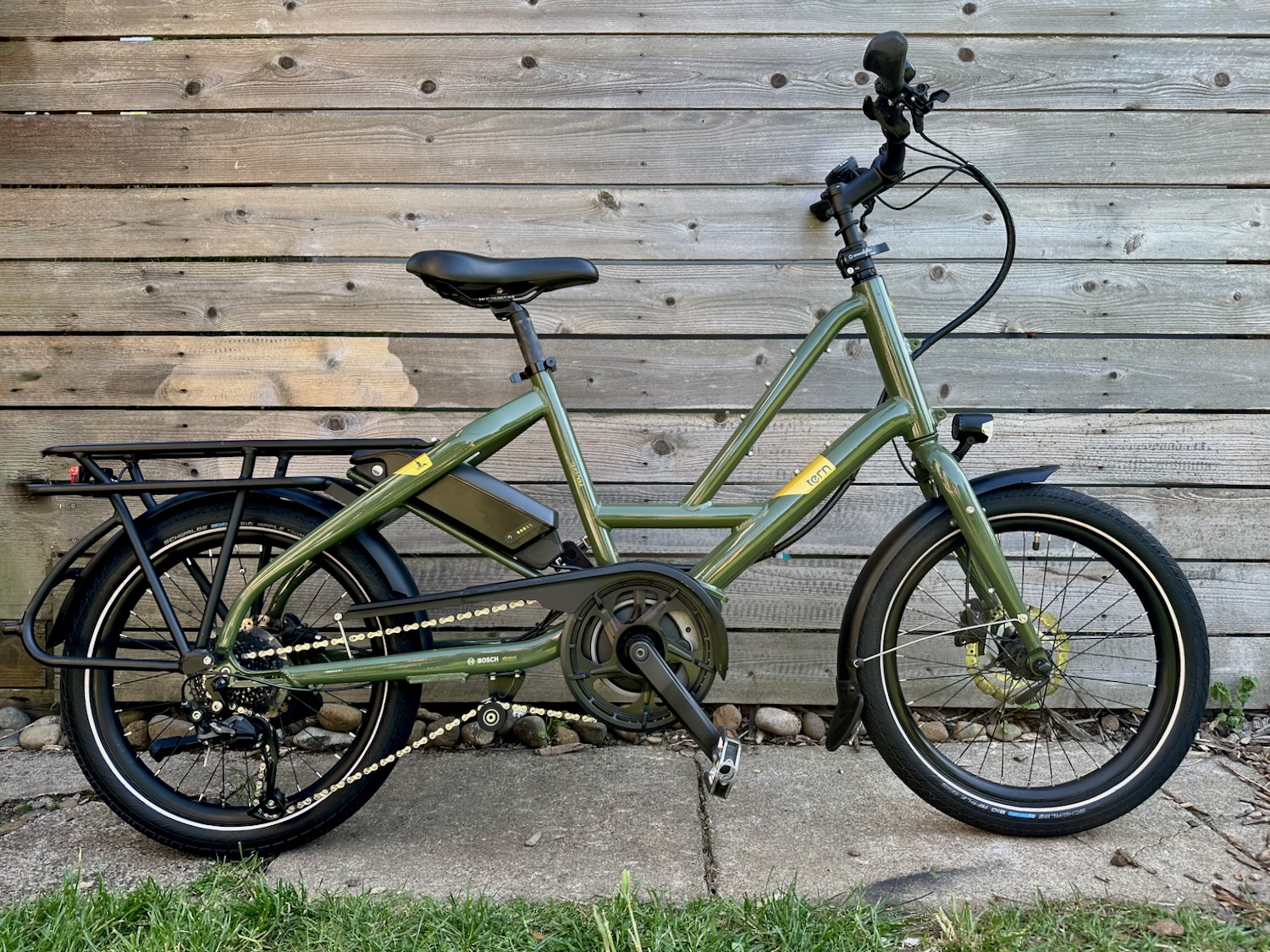

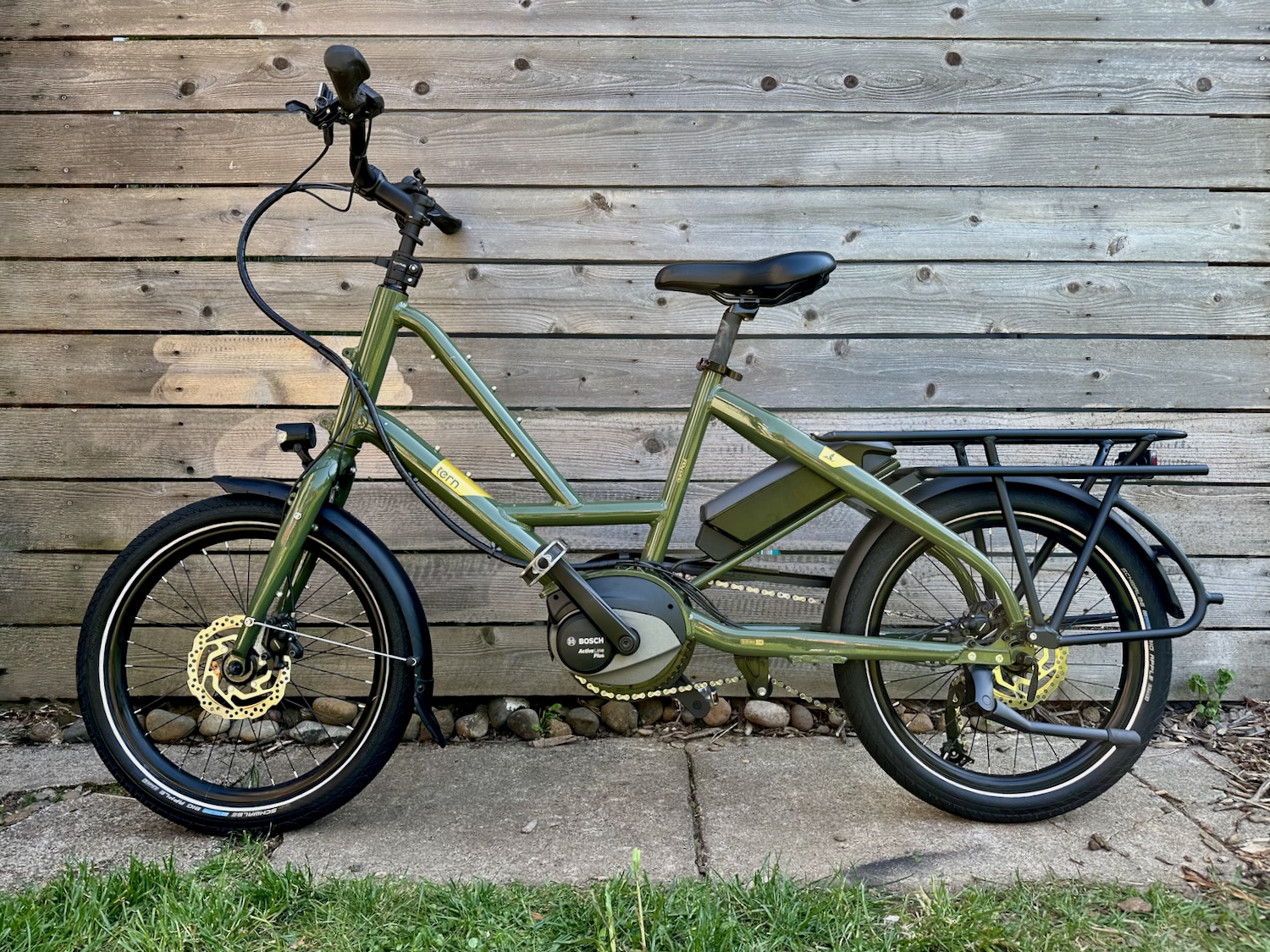

Tern Quick Haul D8 specifications:
-
Frame:
-
Material: 6061-AL aluminum, patented design
-
Size: One-size-fits-all (suitable for riders 5’3″ to 6’3″ / 160 cm to 190 cm)
- Color: Olive/Mustard
-
-
Drivetrain:
-
Bottom Bracket: Motor integrated
-
Chain: KMC for eBike, 8-speed
-
Shifters: Shimano Altus, 1 x 8-speed, trigger
-
Crankset: Tern custom, forged 6061-AL crankarm
-
Rear Derailleur: Shimano Altus Shadow
-
Cassette/Freewheel: Shimano 11-34T, 8-speed
-
-
Wheels:
-

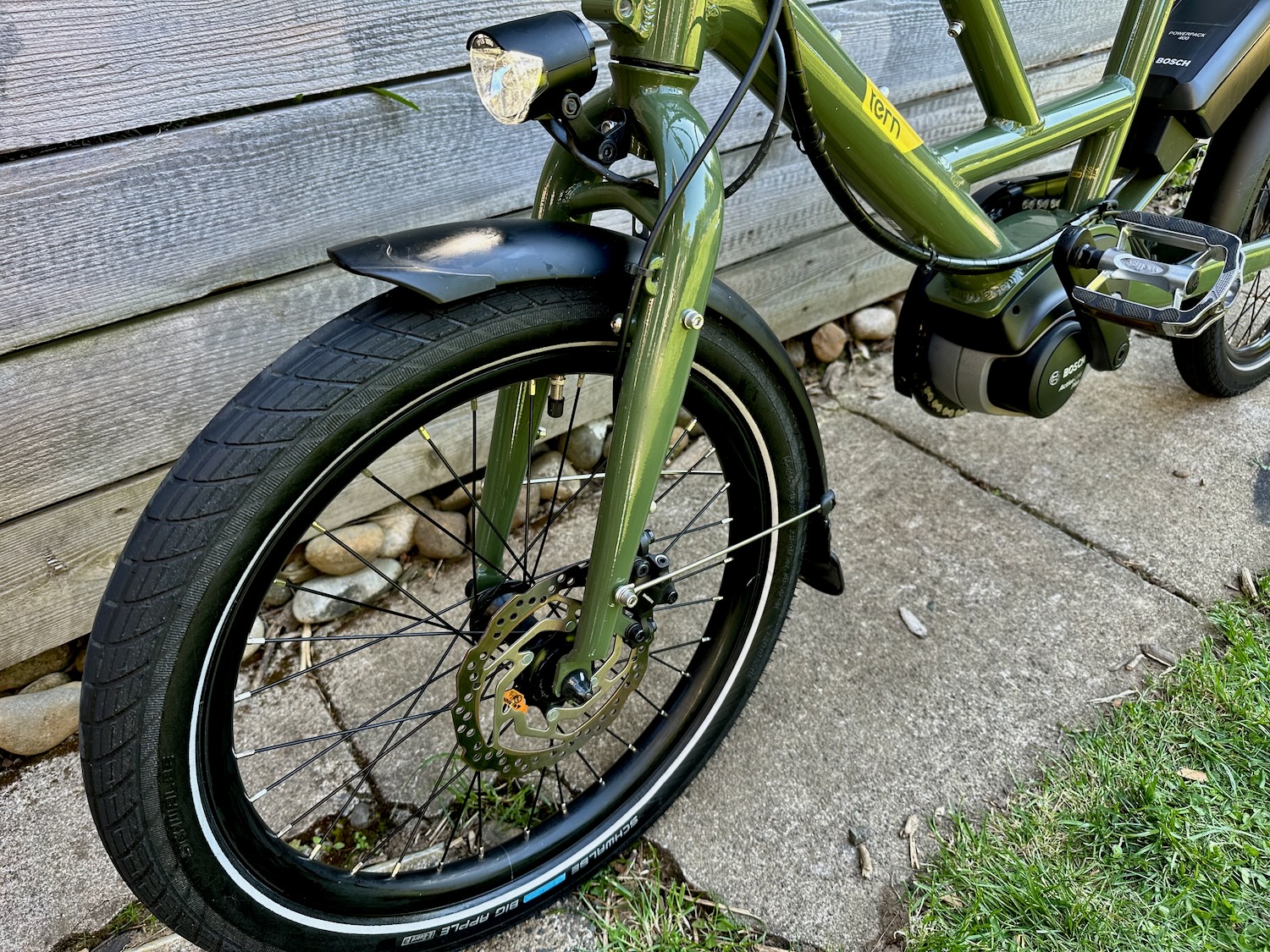

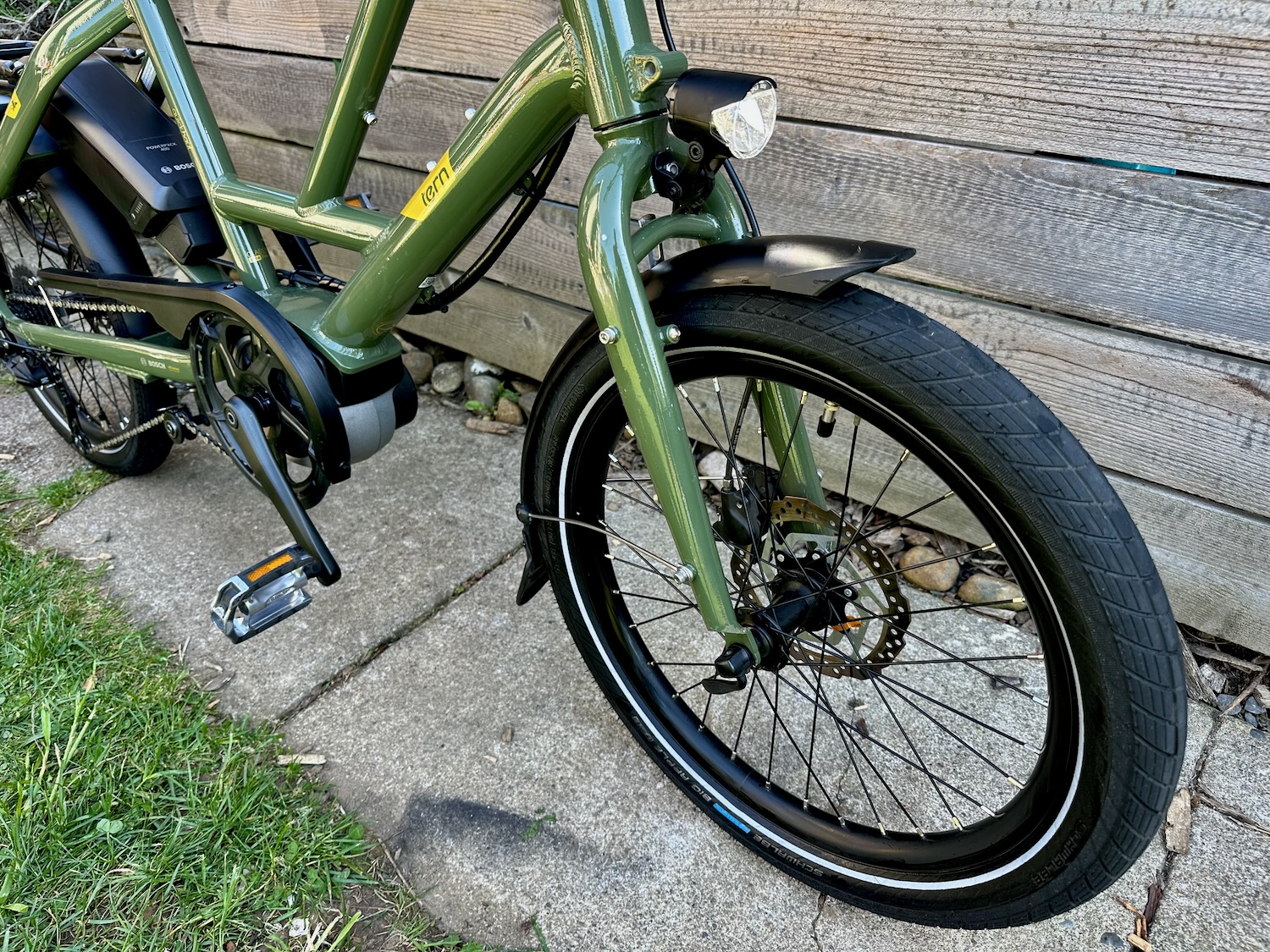

Tires: Schwalbe Big Apple, 55-406 (20″ x 2.15″), puncture protection, Reflex
-
Hubs: Shimano Disc
-
Rims: Kinetix Comp, for disc
-
Spokes: Stainless Steel
-
-
Cockpit:
-
Stem: Speedlifter, 150 mm extension, 3D forged, 31.8 mm
-
Handlebar: Low riser, 31.8 mm, 6061-AL
-
Tape/Grips: Velo ergonomic, lock-on
-
Saddle: Velo Comfort
-
Seatpost: 31.6 mm, 6061-AL, micro-adjust clamp
-
-
Brakes:
-
Brakes: Shimano hydraulic disc
-
Brake Levers: Shimano, hydraulic disc
-
-
Electrical Components:
-
Motor: Bosch Active Line Plus, 270% assist, 50 Nm torque, max speed 20 mph
-

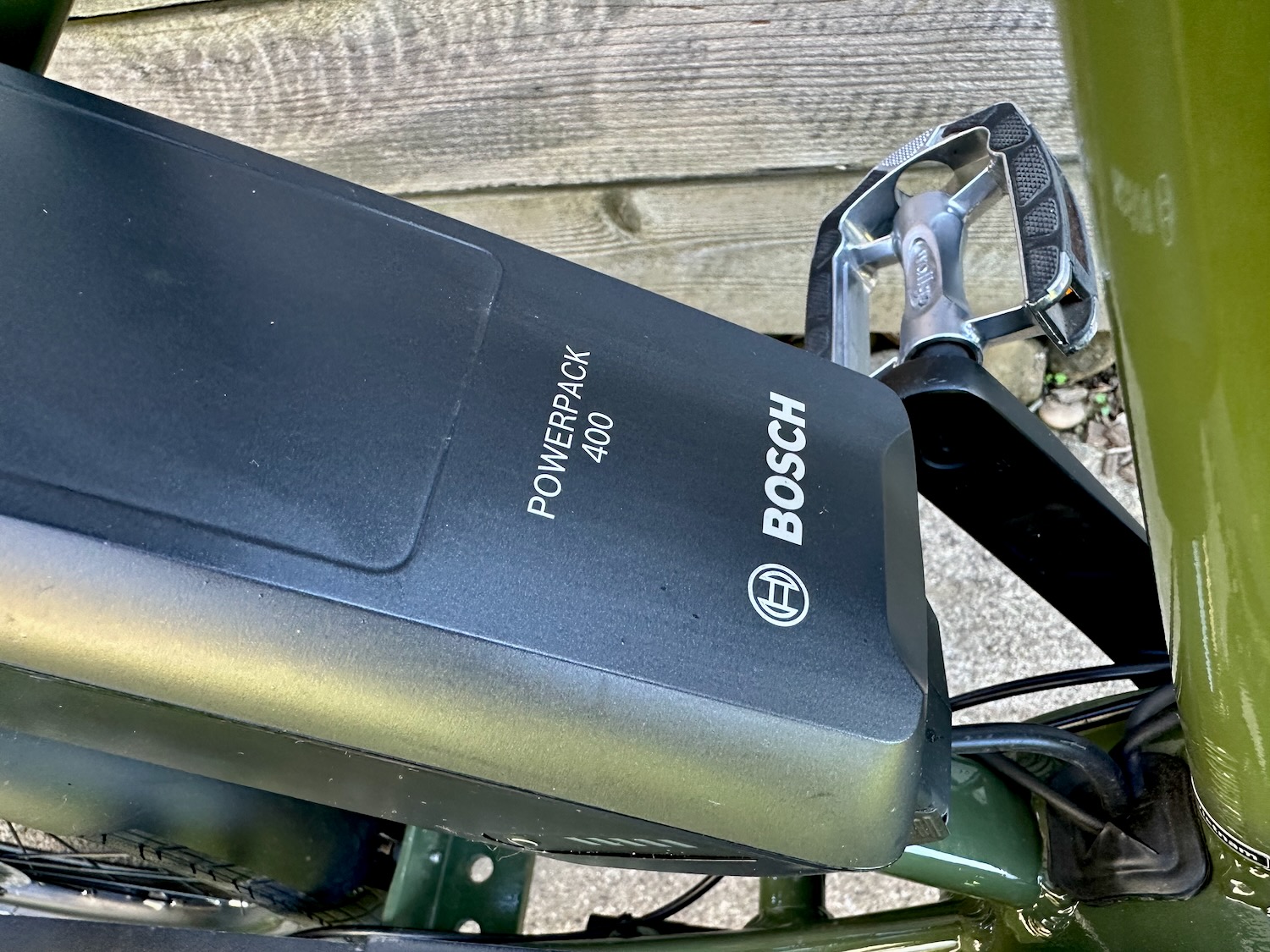

Battery: Bosch PowerPack 400
-
Charger: Compact Charger, 100-240V, 2A
-

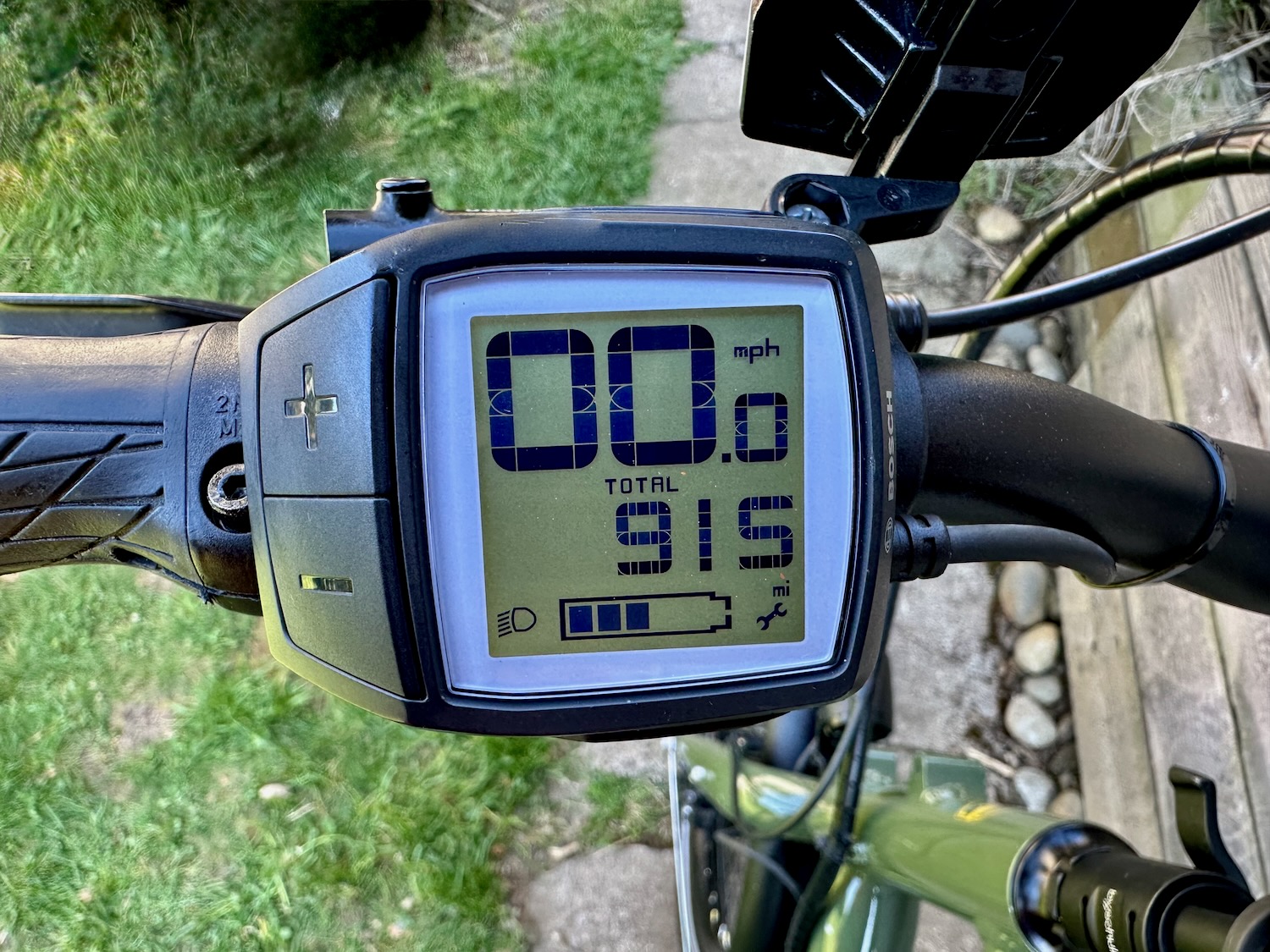

Controller/Display: Bosch Purion
-
