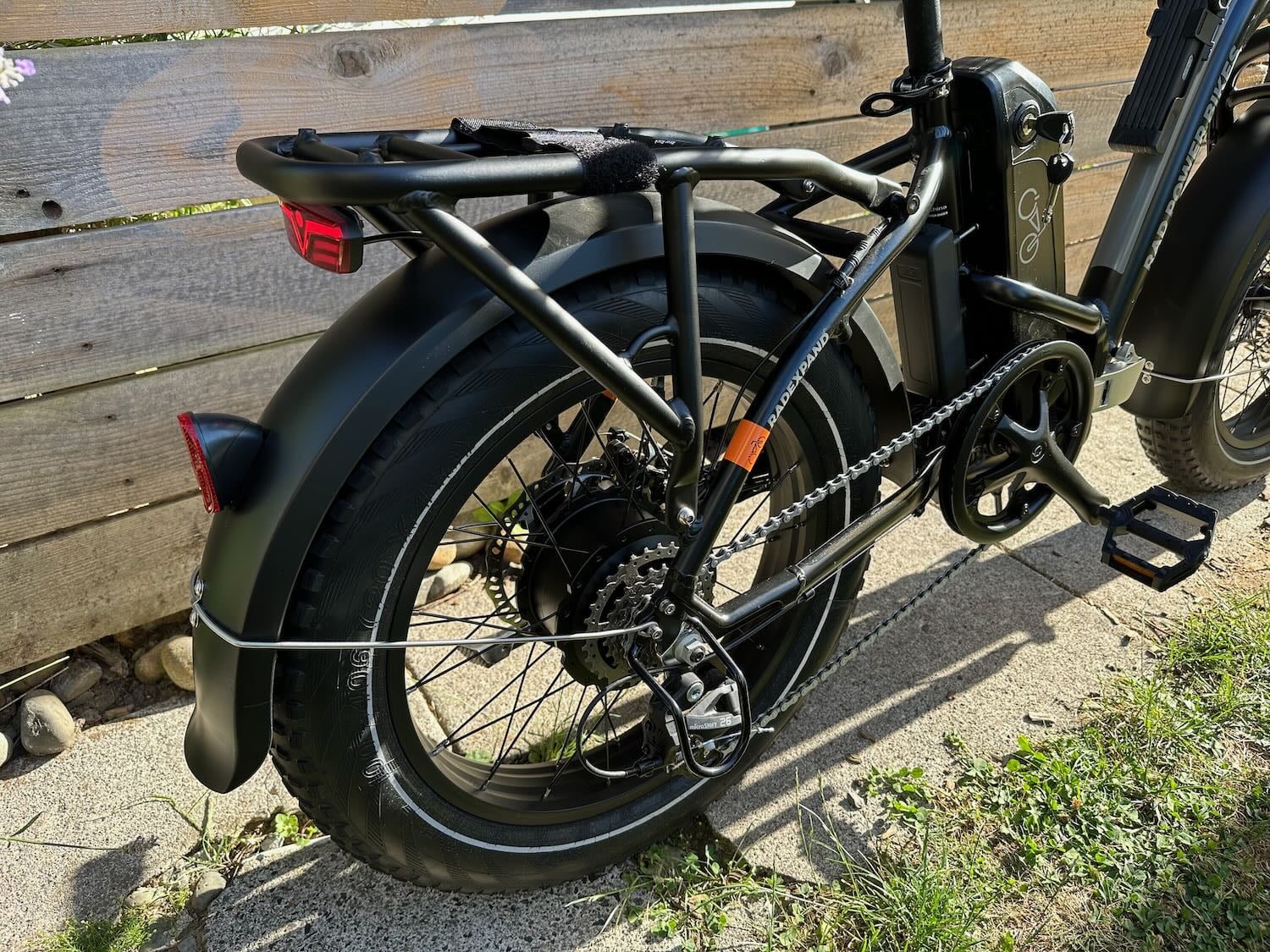

RadExpand 5 Electric Folding Bike
RadExpand 5 Electric Folding Bike - Image 2
RadExpand 5 Electric Folding Bike - Image 3
RadExpand 5 Electric Folding Bike - Image 4
RadExpand 5 Electric Folding Bike - Image 5
RadExpand 5 Electric Folding Bike - Image 6
RadExpand 5 Electric Folding Bike - Image 7
RadExpand 5 Electric Folding Bike - Image 8
RadExpand 5 Electric Folding Bike - Image 9
RadExpand 5 Electric Folding Bike - Image 10
RadExpand 5 Electric Folding Bike - Image 11
RadExpand 5 Electric Folding Bike - Image 12

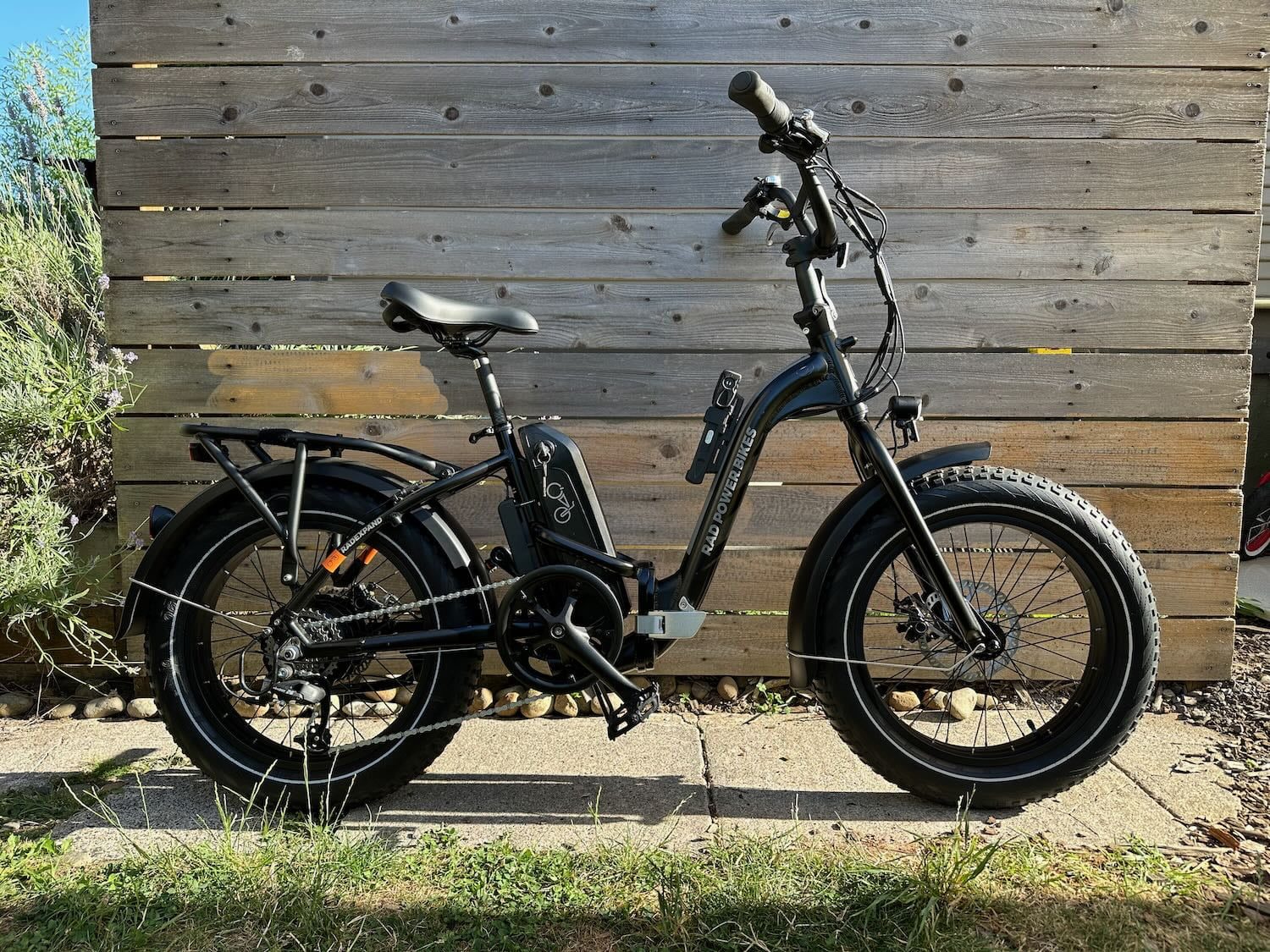

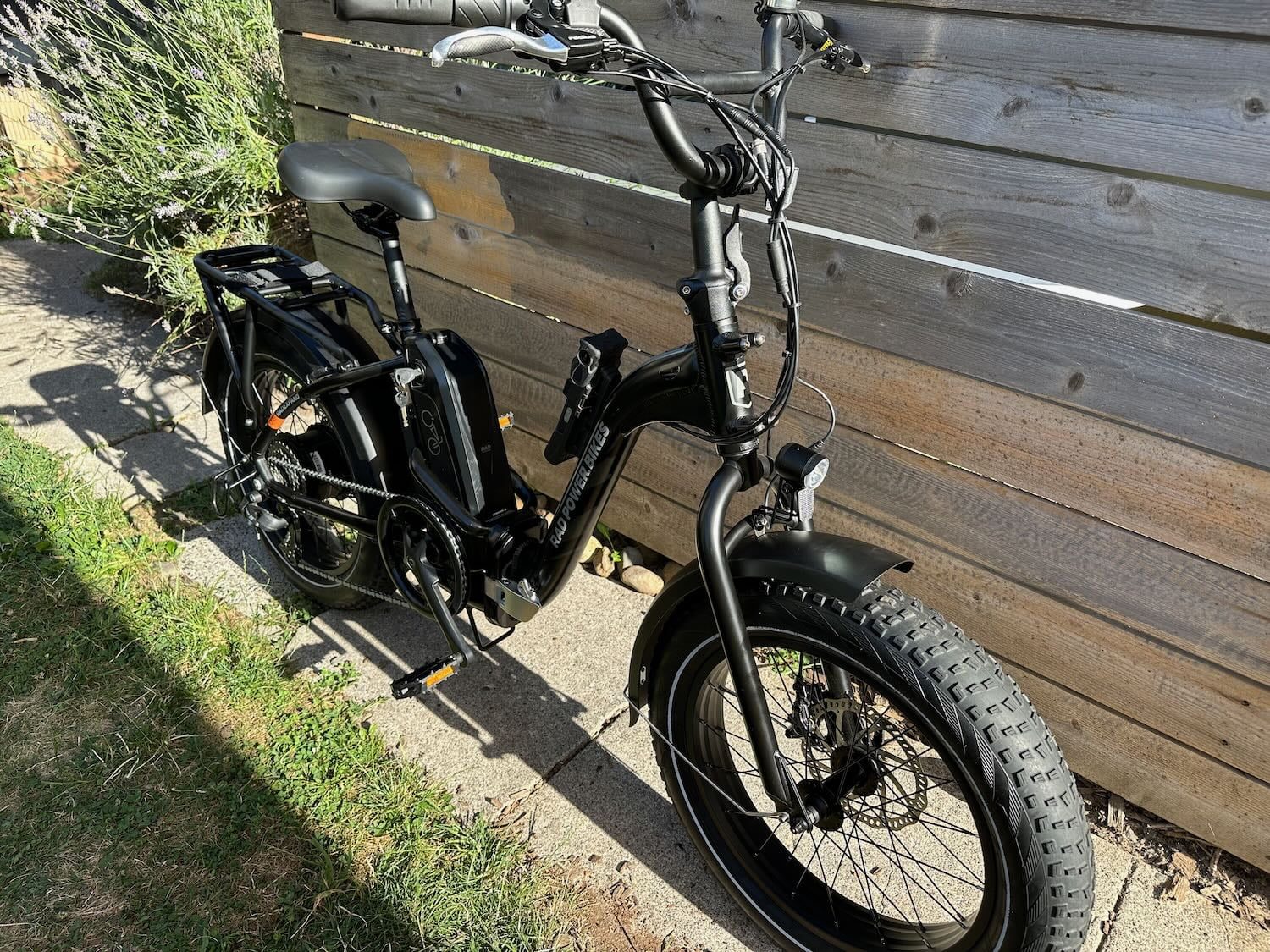

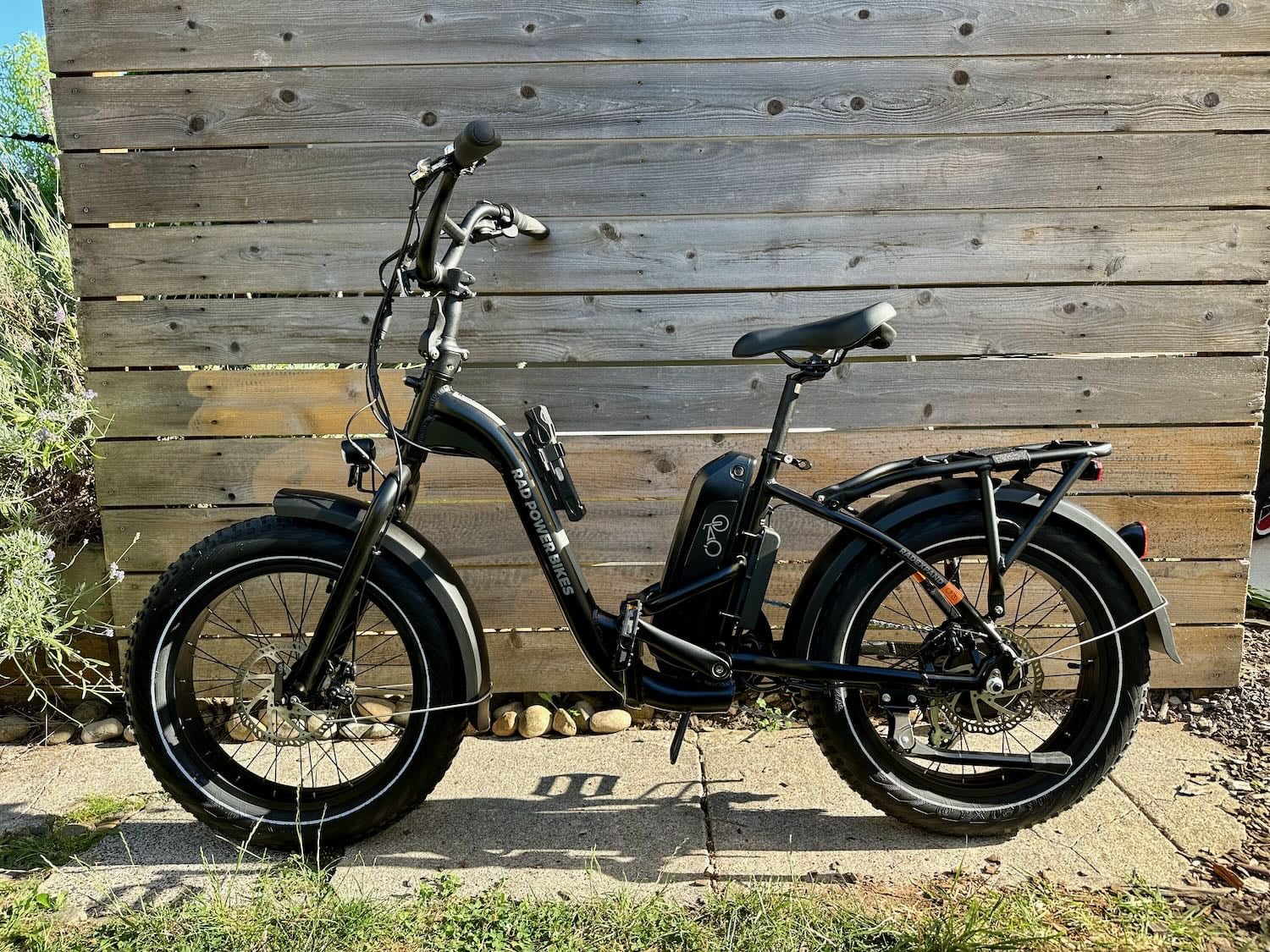

RadExpand 5 Electric Folding Bike

We just go this sweet folding ebike in, freshly tuned and detailed, ready to ride! It’s less than 2 years old and the latest model. Rad typically sells it new for $1599.

Fold in to store. Fold out to explore. Our fan-favorite folding ebike has fat tires to tackle adventures and a small profile for easy storage. Featuring a step-thru frame, you can customize your ride with adjustable handlebars, seven speeds, and four levels of pedal-assist.

$1,100.00

Out of Stock: Contact Me for Special Order

Category: Renewed eBikes Tags: city, commuter, folding, portable, utility Brand: Rad Power Bikes
  • Description
  • Specs
  • Sizing & Dimensions

Description

As the smallest ebike in our lineup, you can simply step thru and ride. No need to swing your leg over the saddle — or struggle to make it over your gear. Our engineers zeroed in on reducing the bike’s weight, making it even easier to fold, lift, and store. Dirt-caked roads, look out. Rugged fat tires help you tackle rough terrain. In a tight spot? The RadExpand is a smart fit for RVs, small apartments, or anywhere else you may be short on space.

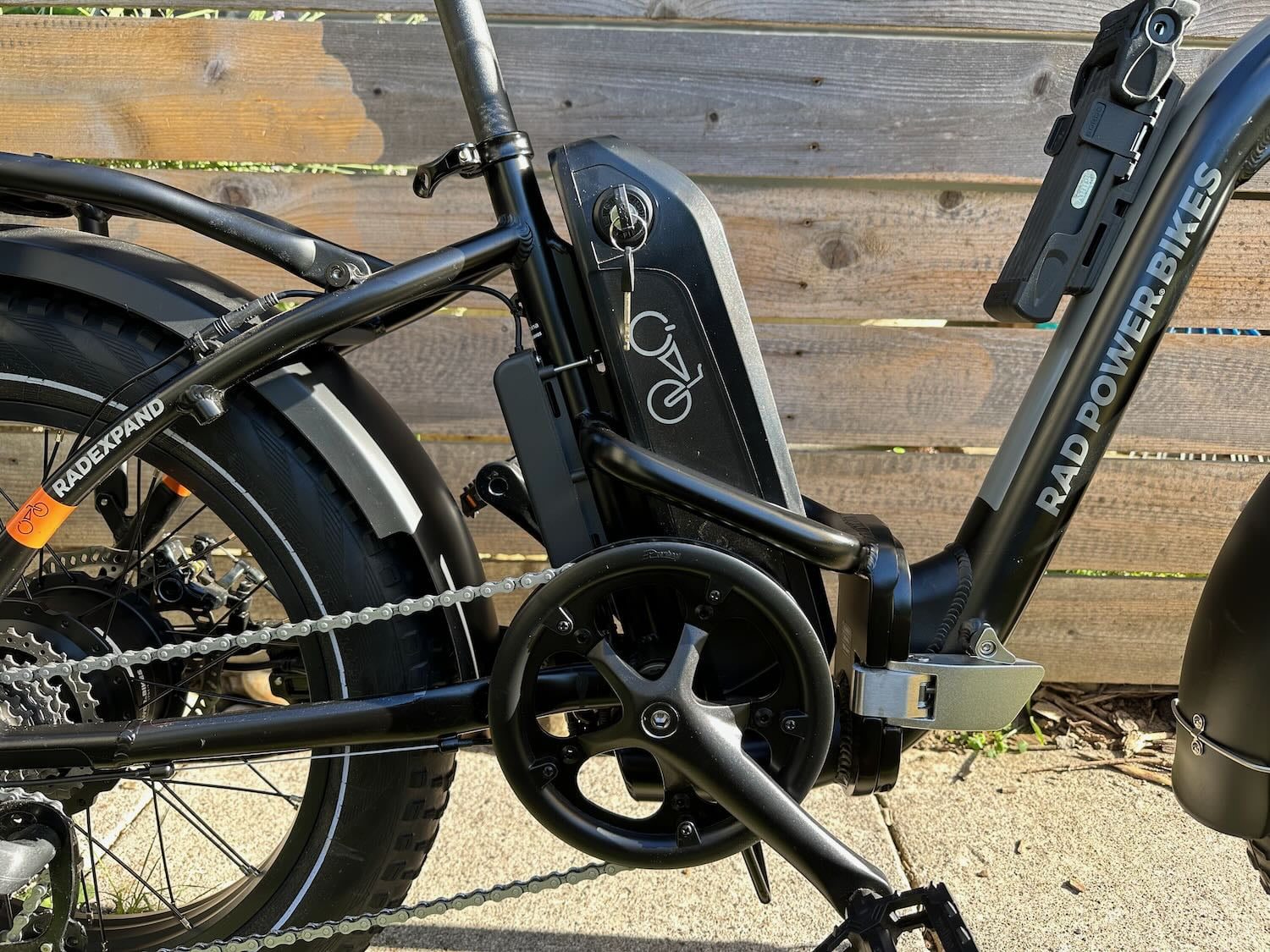

  • Battery: 14Ah 672 Wh external battery
    Bikes shipped to NYC are compliant with UL 2849 and 2271.

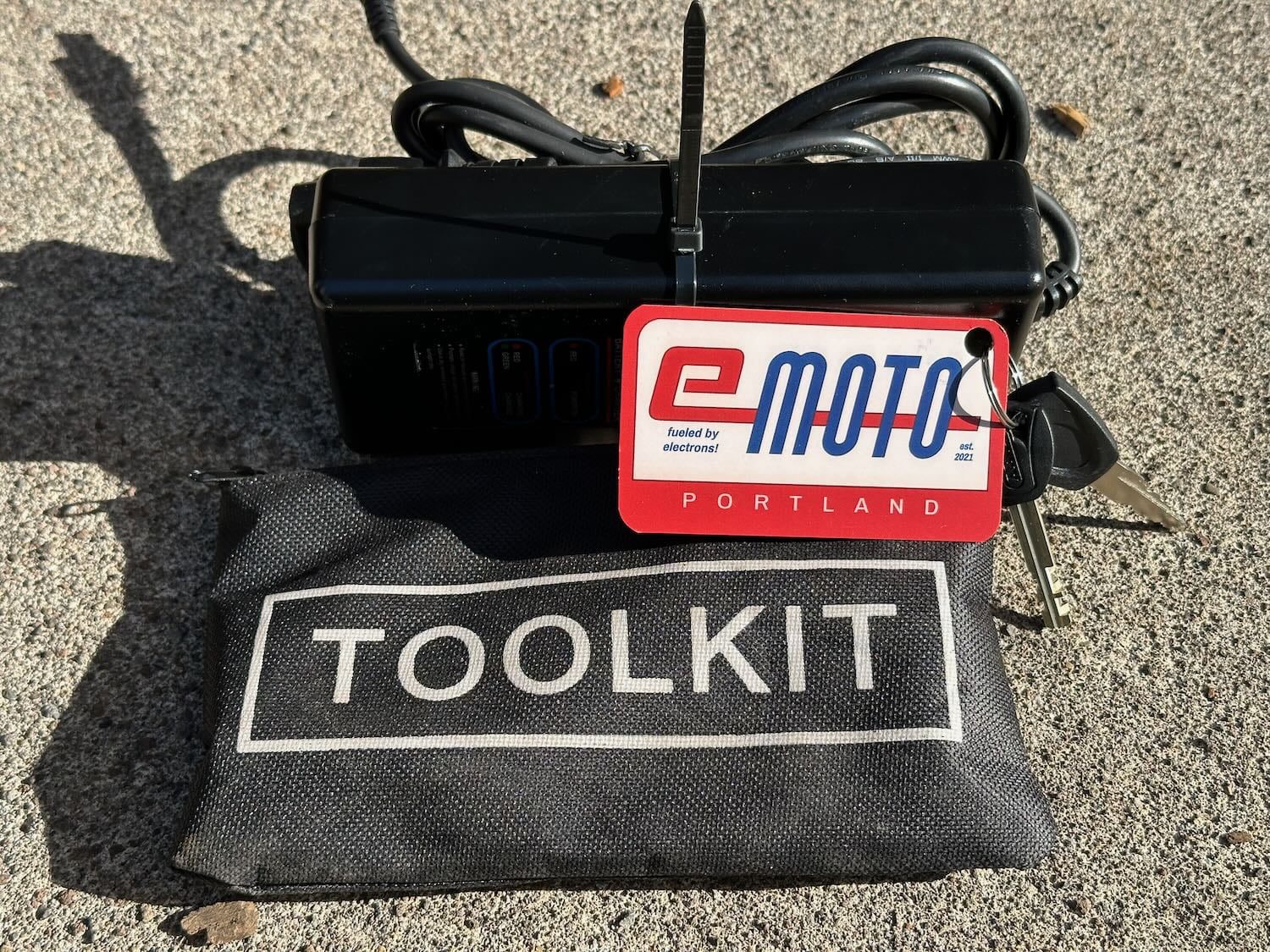

  • Charger: 48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets

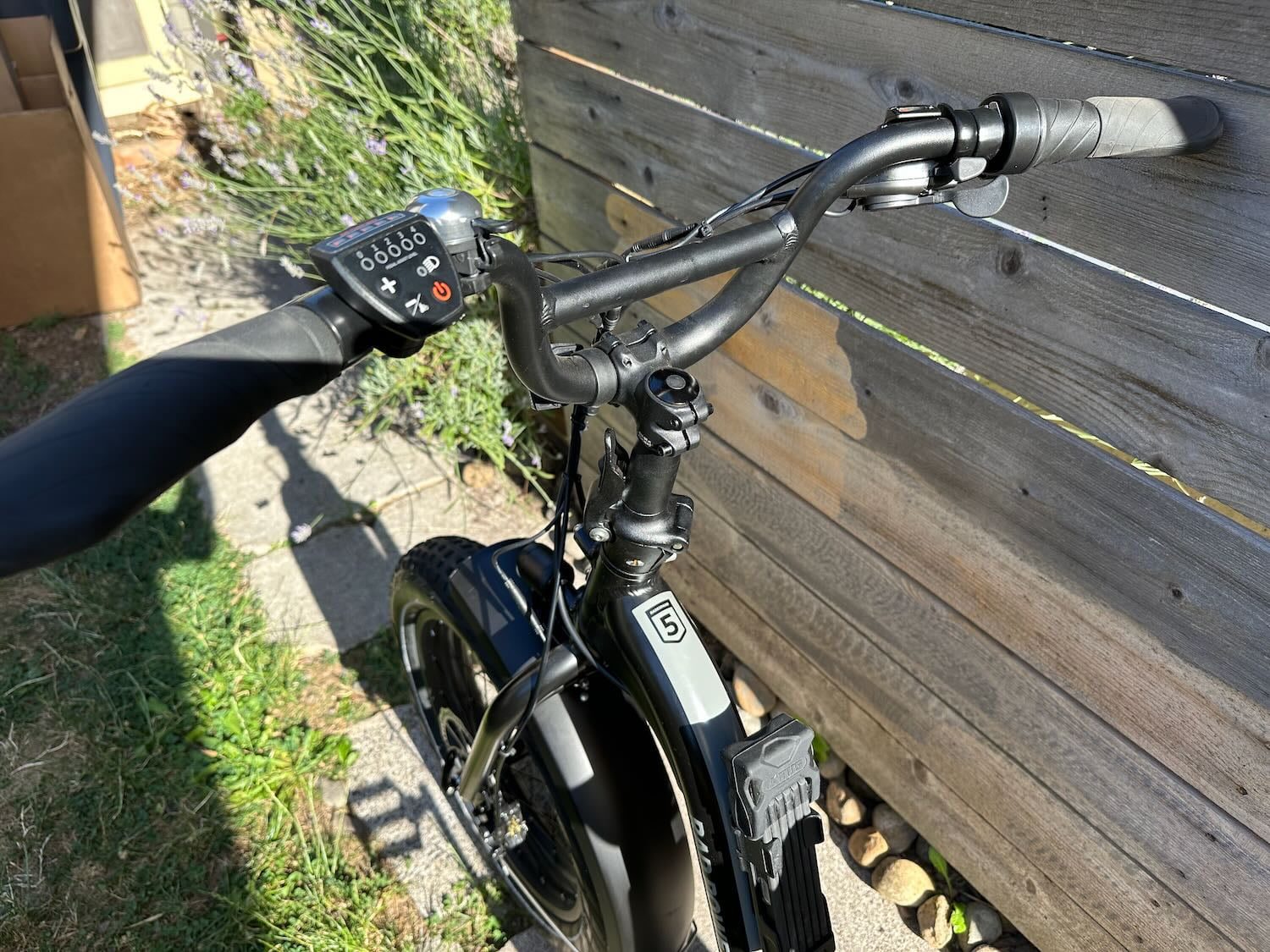

  • Display: LED display. See Display section below for details.
  • Hub Motor: Rear hub 750W
    Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.
  • Lights: Auto-on feature
    Front: LED headlight

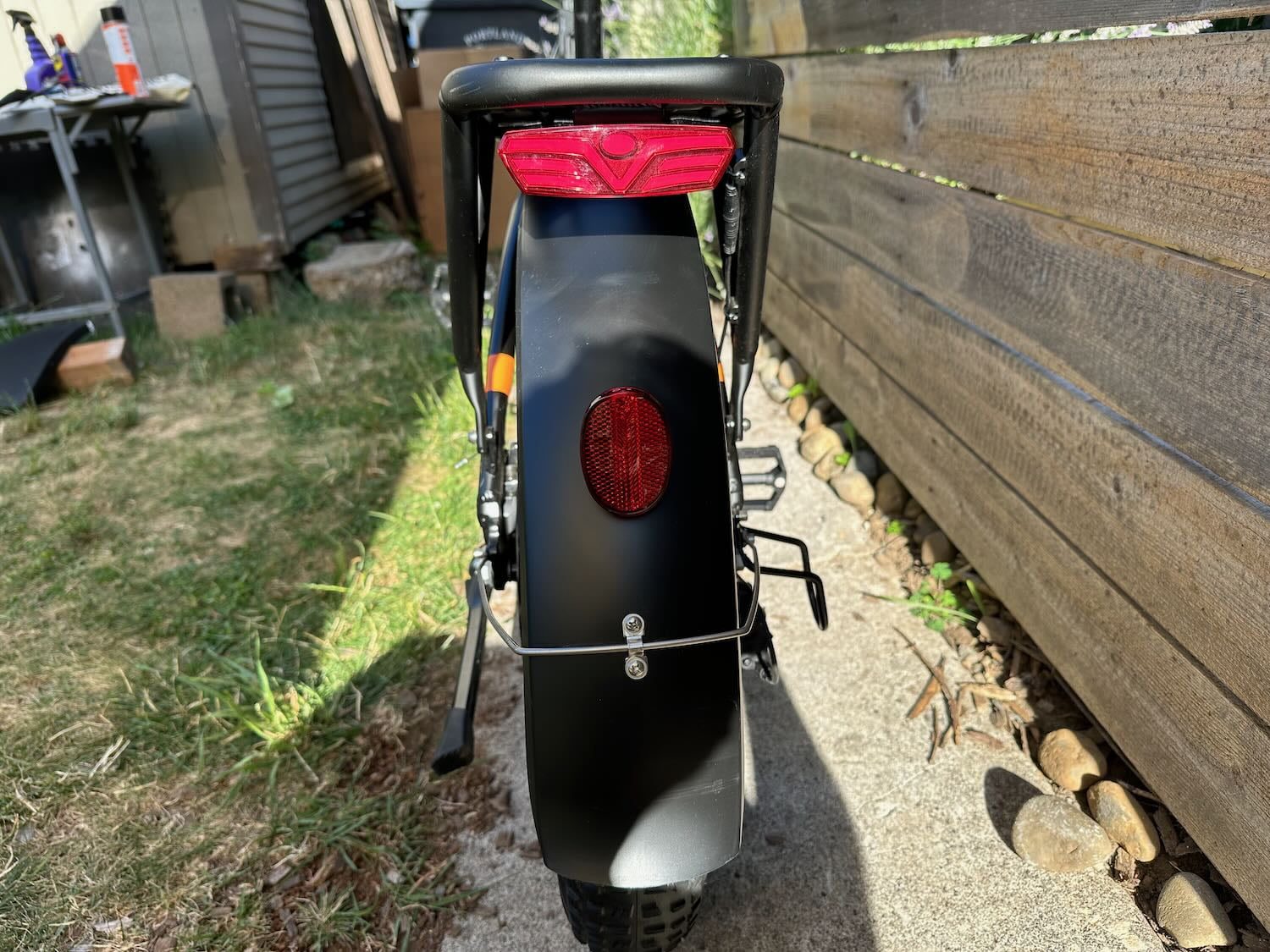

    Rear: Integrated taillight with brake light
  • Pedal Assist: Pedal cadence sensor, 4 PAS Levels, plus a zero assist option
  • Range: Estimated 25 – 45 miles per charge
  • Throttle: Half twist throttle
  • Bell: Yes
  • Brake System: Mechanical caliper
  • Brake Pads: Semi-Metallic compound
  • Brake Rotors: 180 mm
  • Crank Set: 48T with dual-sided chainring guard, 170 mm crank arms
  • Derailleur: 7-Speed MicroShift RD-M26
  • Fenders: Full coverage front and rear fenders
  • Fork: Fixed, Rad custom steel 135 mm hub width, 9 mm quick release
  • Frame: Aluminum
  • Freewheel/Cassette: 7-speed freewheel, 14-32T
  • Gearing: 1×7 speed
  • Grips: Ergonomic rubber comfort grips
  • Handlebar: Alloy, 27″ wide
  • Kickstand: Side-mounted, adjustable lean angle
  • Pedals: Composite platform, CrMo axle with reflectors, standard 9/16″ x 20 TPI threading

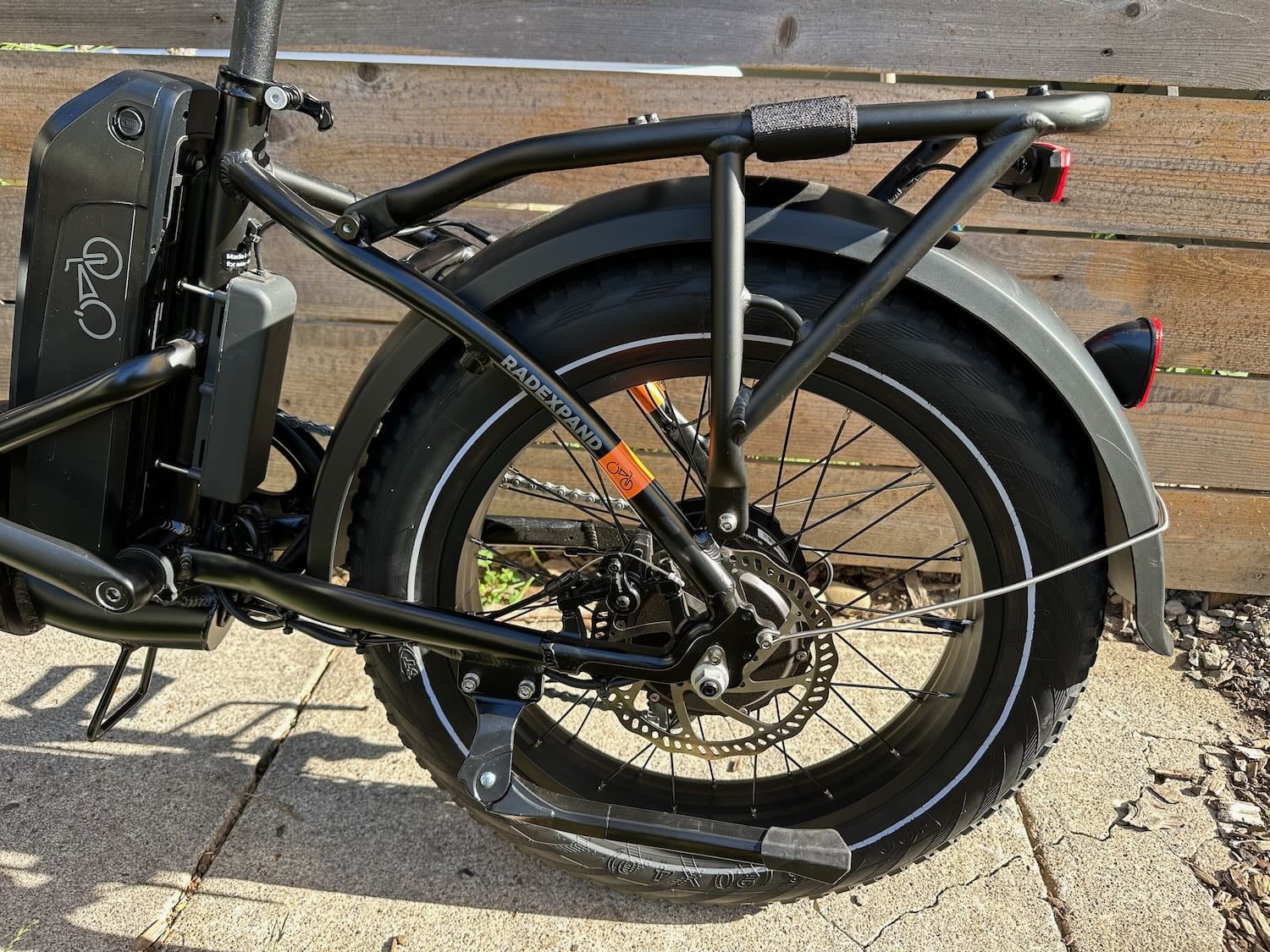

  • Rear Rack: Integrated, 55 lb (25kg) carrying capacity
  • Saddle: Rad Power Bikes with lifting handle
  • Seatpost: Aluminum alloy, 390 mm x 27.2 mm
  • Seatpost Clamp: 31.8 mm diameter
  • Shifter: MicroShift TS71-7, 7-speed thumb shifter
  • Stem: 45 mm length, + 3º rise.

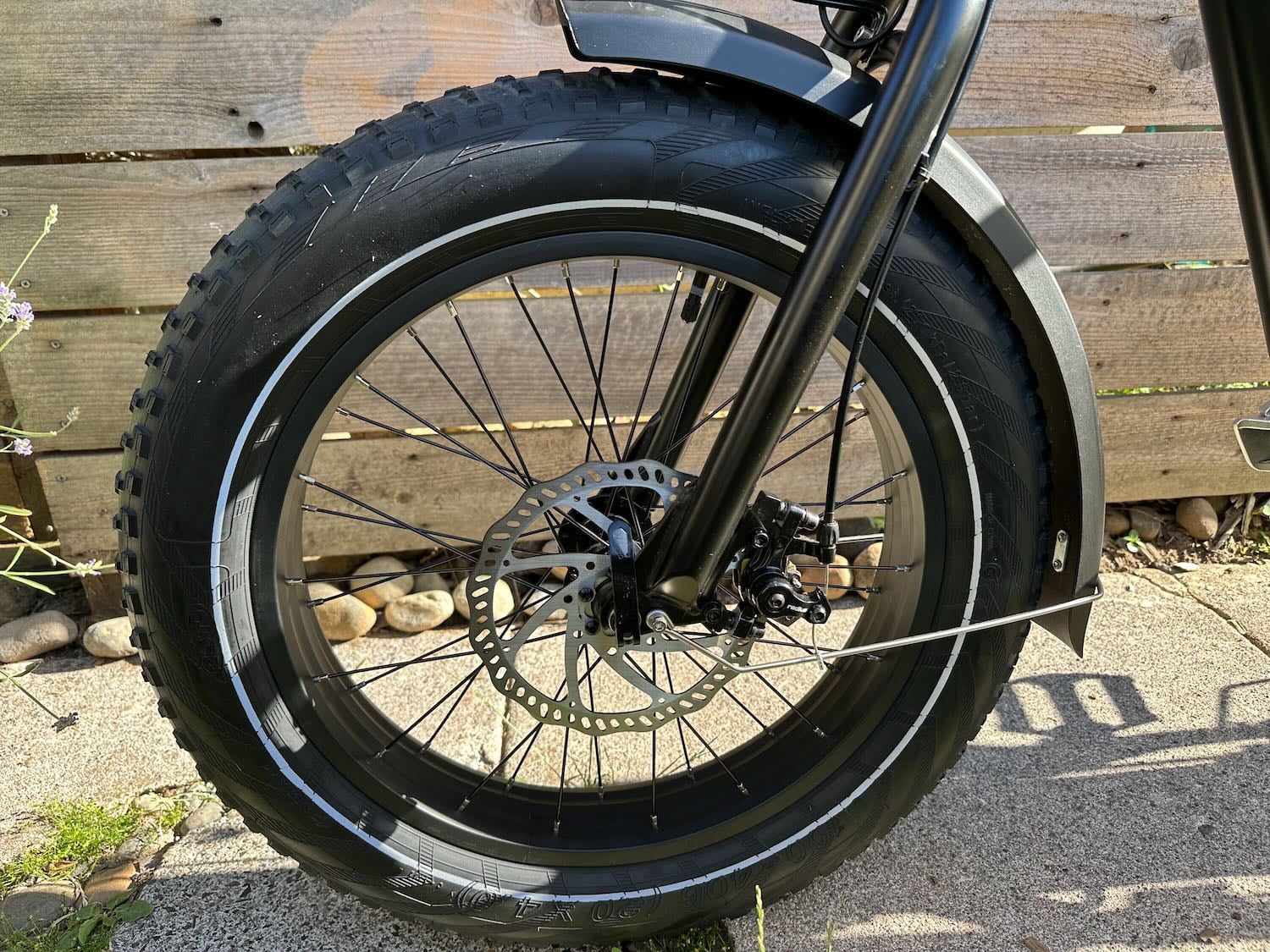

  • Tires: CST BFT 20″ x 4.0″
  • Rider Heights: 4’10” – 5’10”
    (Approx. bike inseam between 24.5″ – 32.25″)
  • Bike Weight: 62.5 lb, 54.8 with battery removed
  • Payload: 275 lb
  • Rear Rack Payload: 59 lb
  • Folded Dimensions: 29H x 25W x 41L”
  • Handlebar Height: 45-48″
  • Reach: 16″
  • Seat Height From ground: 29″–36″
  • From pedal bottom stroke: 24″ – 31″
  • Standover Height: 16″
  • Total Length: 68″
  • Wheelbase: 45″
  • Seat Tube Length: 16″
